Product Description:
A portable forklift is a compact, lightweight lifting solution designed for easy transport and flexible use in various environments.
This innovative forklift helps businesses cut costs while improving safety and convenience. With no hydraulics, there's no oil maintenance or leakage issues, and the long-lasting lithium battery keeps you going longer between charges.
Why the MF Series Portable Forklift Is a Game-Changer:
✔ 300kg Load Capacity – Compact yet robust for daily material handling
✔ No Hydraulic Oil – Powered by an electric actuator, eliminating oil leak risks
✔ Lithium Battery Powered – Up to 200 cycles per single charge
✔ Ultra-Compact Design – Saves space and simplifies operation
✔ Flexible Classification – Defined as a Portable Forklift, not MEWP
✔Multiple Load Options Available – 500kg, 1000kg and 1500kg versions also offered
Features:
*Smaller Turning Radius,Suitable for the Narrow Place
*Lighter Weight and Easier Operation
*With Maintenance-Free Integrated Hydraulic Cylinder
*Large Capacity Lithium Battery + Easily Replace Design
*Suitable for the Single Side Pallet
*More Reliable With the Stainless Steel Arm Structure
Specification:

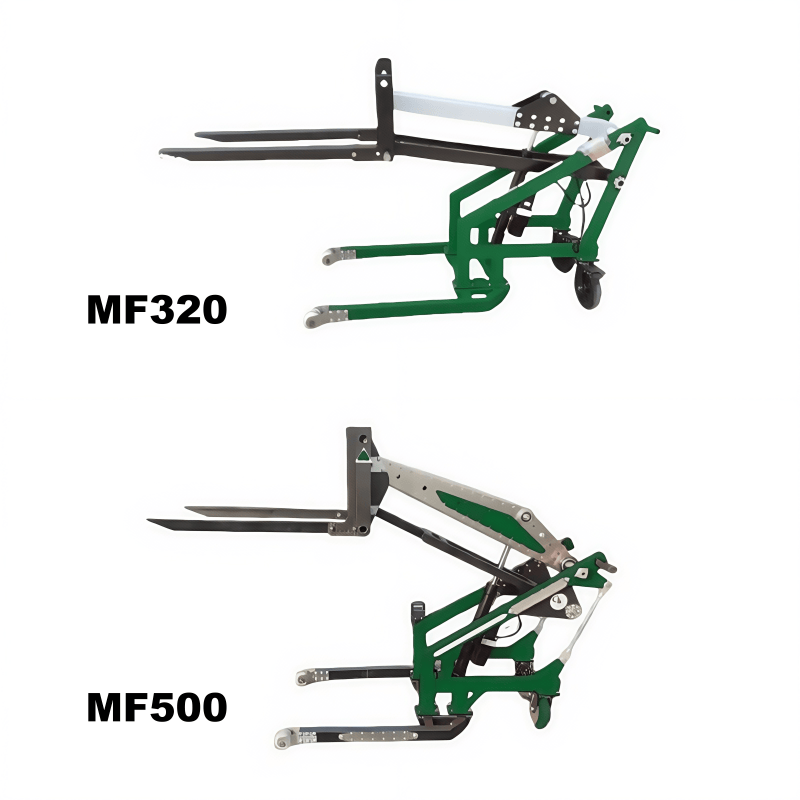

| Model | MF320 | MF500 |
| Load Capacity | 320KG | 500KG |
| Load Center | 400mm | 400mm |
| Lifting Height | 1450mm | 1450mm |
| Lowered Height | ≤80mm | ≤80mm |
| Overall Length | 2050mm | 2050mm |
| Overall Width | 768mm | 768mm |
| Fork Length | 800mm | 800mm |
| Wheelbase | 1150mm | 1450mm |
| Fork(Outside Width) | 680mm | 680mm |
| Fork(Inside Width) | 305mm | 305mm |
| Min Turning Radius | 1270mm | 1500mm |
| Lifting Speed(Unload/Full Load) | 140/135mm/s | 140/135mm/s |
| Down Speed(Unload/Full Load) | 150/155mm/s | 150/155mm/s |
| Max Gradeability(Unload/Full Load) | 6/3% | 6/3% |
| Lifting Motor | DC 0.8KW | DC 0.8KW |
| Battery | 48V/12AH | 48V/12AH |
| Weight | 115KG | 123KG |
Company Introduction:
Chenlift (Suzhou) Machinery Co Ltd. is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.
