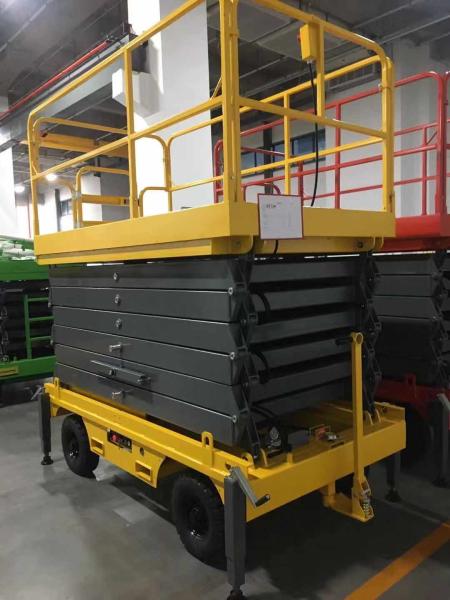

4-20m Mobile Manual Pushing Platform Lift Table
Description:
Our mobile scissor lift can be chosen height from 4m to 18m,It can move in a variety of ways:hand push, pull-type, self-style and vehicle-mounted style.The removable type guardrail, can reduce the storage space, convenient in and out of the places where highly restricted.It is assembled with emergency stop button,the platform will slowly down when press the button in an emergency occasion.This kind of scissor lift can reduce your investment cost, improve work efficiency and ensure the safety of your work.
Quick Detail:
| Name |
Mobile Scissor Lift |
Brand Name |
CHEN LIFT |
| Loading Capacity |
500Kg |
Platform Height |
11m |
| Platform Size |
2.1*1.15m |
Color |
Blue; Yellow; Others |
| Lifting Power |
2.2Kw |
Power Supply |
DC |
| Driving Power |
0.75Kw |
|
|
Our Advantages
1. Available to choose the height from 4m to 18m.All kind of height can be chosen.
2. Electrical box fixed on the platform base, and equipped with a stop button, in case of accidents.
3. It can be move in a variety of ways, hand push, pull-type, self-style and vehicle-mounted style.
4. Removable type guardrail, convenient disassembly, can reduce the storage space, convenient in and out of the places where highly restricted.
5. The scissor made of strong manganese steel rectangular tube with high strength, stability and reliability advantages.
6. The widely working platform can bear heavy load. Multiple workers can operate the platform, because it has widely high attitude working ranges.
7. Configuring toolbox: basic tolls can be placed to meet the need of quick maintenance.
8. Telescopic support and adjustment of the support feet to ensure stable and reliable use.
9. Polyurethane paint with good corrosion resistant. Different colors can be freely choose by customers.
Optional Features:
Extension Platform
Extension Capacity: 100Kg
Extension Length: 800mm
Safety Precaution:
1. The operation voltage on the platform is 24V
2. Emergency stop button on the paltform and ground
3. Auxiliary platform lowering
4. Telescopic legs on the chassis
5. Explosion-proof device for oil tube
6. Low battery protector
7. Charging Protection system
Configurations:
- Electric system: Schneider contactor, SANLICO button, CHNT electrical
- Hydraulic System: Hycman brand power pack , sealing
- Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
- Platform Surface : Antiskid checkered plate
- Tire: Ø500-8 Inflated tires
- High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose
Optional Configuration:
- Power Supply: 3phases/380V/50HZ; DC 24V ; manual pump
- Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
- Extension Platform
- Rubber Solid Tire
- Flame Proof Control Cabinet
Why to choose CHEN LIFT Scissor Lift?
· High Quality
· Reasonable Price
· Good after Service
· 1 Year Warranty
· More Than 10 Years Experience
