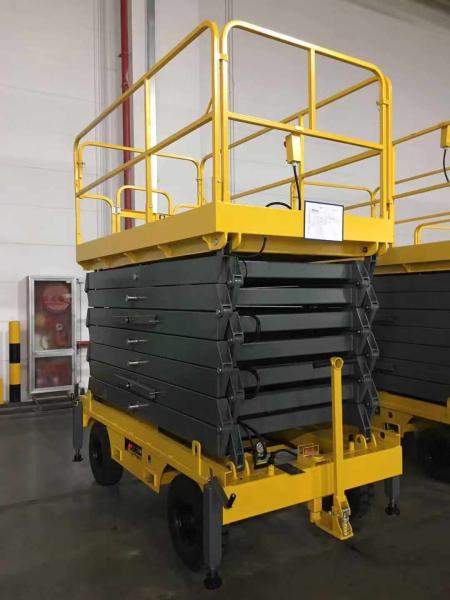

500kg Mobile Scissor Platform Electric Lift Table 16m Working Height
Description:
The mobile scissor lift is the professional high-altitude operation equipment and widely used for the installations and maintenance, at places likeconstruction sites, workshops, warehouse, granary, bus/railway stations, hotels, airports and gas station . It is used where more work space and lifting capacity is required. With working height up to 10m
and capacities up to 450kg, they are designed to provide larger work areas and generally to allow heavier loads than boom lift.
Quick Detail:
| Name |
Mobile Scissor Lift |
Brand Name |
CHEN LIFT |
| Loading Capacity |
500Kg |
Platform Height |
14m |
| Platform Size |
2450mm*1350mm |
Color |
Blue Color or Optional |
| Lifting Power |
3Kw |
Power Supply |
AC&DC / DC |
| Motorized Power |
0.75 Kw |
|
|
Loading Capacity on Extension Platform
|
100kg |
|
Extension Platform Length
|
0.8m |
|
|
Major Parameters
- Model: MK1400
- Loading Capacity 500kg
- Maximum Height 14000mm
- Minimum Height 1700mm
- Platform Size 2450*1350mm
- Lifting Power 3kw
- Motorized Power: 0.75Kw
- Power Voltage DC24V
- Lifting Time 150s
- Cylinder Ф80 (3PCS)
- Gear Pump 6ml/r
- Total Weight 2680kg
- Measurement 2580*1680*2260MM
Configurations:
- Electric system: Schneider contactor, SANLICO button, CHNT electrical
- Hydraulic System: Hycman brand power pack , sealing
- Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
- Platform Surface : Antiskid checkered plate
- Tire: Ø600-9 Inflated tires
- High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose :
- Battery: (DC12V,150AH)*4 with charger
Optional Configuration:
- Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
- Extension Platform
- Rubber Solid Tire
- Flame Proof Control Cabinet
Applications:
1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.
2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.
Why to choose CHEN LIFT Mobile Scissor Lift?
· High Quality
· Reasonable Price
· Good after Service
· 1 Year Warranty
· More Than 10 Years Experience
Communication with Customers
A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?
B: The main difference is from the structure and the material
The scissor lift is in scissor structure with steel material
The aerial work platform is in mast structure with aluminum material
A: How is that for quality control in your factory?
B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly
1.Strict quality control system on the whole process of production
2.Imported key arts to ensure the high quality of our products
3.Advanced equipment and tools for examination and quality control
4.100% strict examining products before shipment
5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.
A: What is the delivery time for your goods?
B: it is 30days after order confirmation
A: What spare parts that you can offer?
B: We provide following spare parts freely for your maintenance of the machine:
| Item |
Quantity |
| Fuse |
3 |
| "O" Rubber Seals Φ11 |
3 |
| Wrench |
1 |
| Pressure Oiler |
1 |
| Cross Screwdriver |
1 |
| Straight Screwdrive |
1 |
A: How long is your quality guarantee period?
B: We have one year warranty.
Product Tags:
|
|
500kg Mobile Scissor Platform Electric Lift Table 16m Working Height Images
|
